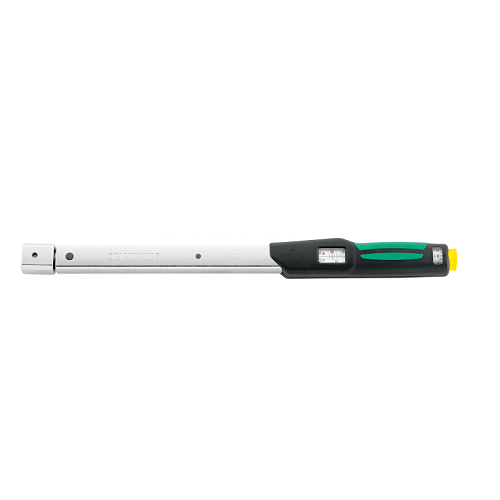

Cần xiết lực MANOSKOP® Stahlwille No. 730Fix ( không kèm đầu )

Mã sản phẩm: 96503005
Xuất xứ: Đức
Bảo hành: .
Hãng: Stahlwille
Liên hệ
Chính sách bán hàng
  • Giá chưa bao gồm VAT
  • Giao hàng miễn phí toàn quốc đơn hàng trên 3 triệu ( không áp dụng cho hàng hóa cồng kềnh và nặng )
  • Hàng hóa chính Hãng 100%
  • Thương mại liên hệ số Hotline để có giá tốt
Sản phẩm khuyến mãi
Sản phẩm vừa xem

Cần xiết lực MANOSKOP® Stahlwille No. 730Fix ( không kèm đầu )

Torque wrench Service MANOSKOP® with receptacle for insertion tools No. 730Fix


  • for daily use in series production
  • the setting knob can be unscrewed after the target has been set – making inadvertent changes to the settings impossible
  • the TORX® TAMPER-RESISTANT locking screw supplied with the tool also protects against unwanted manipulation the adhesive seals supplied offer a further level of security. It is not possible to adjust the setting without breaking the seal
  • click-type
  • the measuring element is only under load while force is being applied, no need for manual reset to zero
  • mount for interchangeable insert tools
  • QuickRelease safety lock
  • fast, accurate setting thanks to QuickSelect quick-action adjuster
  • dual stop signal
  • easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales
  • can be applied for either clockwise or anticlockwise tightening by turning the inserts over
  • any force applied to the tool after the 'click' or applied in the opposite direction to the current function – e.g. forcible loosening of a jammed screw -does not act on the trigger mechanism and cannot cause damage to it
  • two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and skydrol)
  • calibration using perfectControl® calibrating unit No 7794 or calibration system No 7706. Readjustment does not require disassembly
  • certificate in accordance with DIN EN ISO 6789-2:2017
  • registered design
  • in sturdy plastic box (size 80-100 in steel box)
  • display deviation value ± 3%


Code

size

W

W

X

X

Fine scale
X

J
mm

b
mm

h
mm

L
mm

LF
mm

SF
mm

R
g

R g
with box

96503005510–50 N·m7–37 ft·lb5 N·m1 ft·lb0,25 N·m9x122823330280,517,58281632
965030101020–100 N·m15–75 ft·lb10 N·m2,5 ft·lb0,5 N·m9x12282338633617,59861788
965030121225–130 N·m20–95 ft·lb10 N·m2,5 ft·lb0,5 N·m14x1828234213792511241928
965030202040–200 N·m30–150 ft·lb10 N·m5 ft·lb1 N·m14x182823467424,52512661890
965030404080–400 N·m60–300 ft·lb20 N·m10 ft·lb2 N·m14x182823607564,52516662444
9650306565 *130–650 N·m100–480 ft·lb50 N·m20 ft·lb2,5 N·m14x1830,625,68908482532426500
96503465II/65130–650 N·m100–480 ft·lb50 N·m20 ft·lb2,5 N·m22x2830,625,69119005534907000
9650308080160–800 N·m120–600 ft·lb100 N·m25 ft·lb5 N·m22x2830,625,61178116755479410500
96503100100200–1000 N·m150–750 ft·lb100 N·m25 ft·lb5 N·m22x2830,625,61363135255519611000
96583005a/590–450 in·lb7–37 ft·lb50 in·lb1 ft·lb2,5 in·lb9x122823330280,517,58321638
96583010a/10180–900 in·lb15–75 ft·lb100 in·lb2,5 ft·lb5 in·lb9x12282338633617,59881790
96583020a/20350–1800 in·lb30–150 ft·lb100 in·lb5 ft·lb10 in·lb14x182823467424,52510662072
96583040a/4060–300 ft·lb800–3600 in·lb20 ft·lb100 in·lb2 ft·lb14x182823607564,52516702614
